Automated Print & Cut System for Canon Colorado Workflow Optimization

The XY Matic Trim Plus Online is a fully automated wallpaper cutter designed to integrate with Canon Colorado printers, enabling seamless print-and-cut workflows with precision and efficiency.

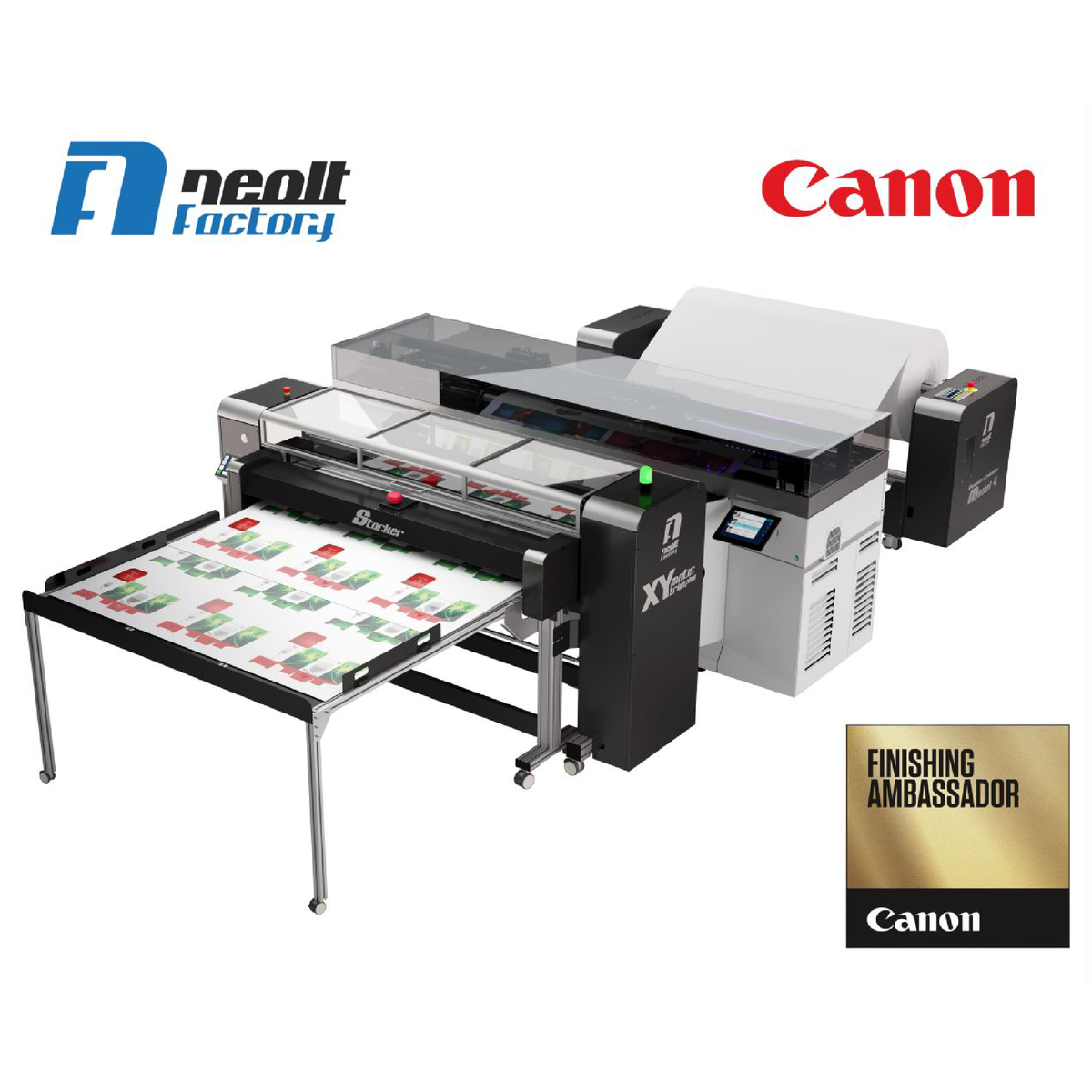

The Neolt XY Matic Trim Plus Online with Canon Colorado is a fully automated cutting system designed to synchronize directly with your printer for continuous production.

This advanced solution enables automatic horizontal and vertical cutting of wallpaper and printed media, eliminating manual intervention and improving workflow efficiency. The system adjusts cutting speed to match the printer, ensuring perfect synchronization and consistent output.

With a patented alignment system, self-learning capabilities, and support for multiple materials, it is ideal for high-volume wallpaper and print production environments.

  • Seamless integration with Canon Colorado printers
  • Fully automated print-and-cut workflow
  • Patented alignment system for precision trimming
  • Adaptive speed control synchronized with printer output
Neolt XY DTF automatic DTF film cutter machine

Ideal Applications

  • Automated wallpaper production workflows

  • Canon Colorado print-and-cut integration

  • High-volume print shops

  • Interior décor and wall covering production

  • Vinyl, banner, and display graphics finishing

  • Textile and polyester media cutting

See the XY Matic Trim Plus Online in Action

Watch how the Neolt XY Matic Trim Plus Online integrates with Canon Colorado printers to deliver fully automated, synchronized print-and-cut production.

KEY FEATURES

Touchscreen LCD display with intuitive software Seamless integration with Canon Colorado printers
Fully automated horizontal and vertical cutting Patented alignment system for precision trimming
Self-learning system with saved cutting marks Adjustable speed control on X & Y axes
Automatic speed synchronization with printer Excellent visibility of cutting area
Pneumatic pinch rolls with silent compressor Automatic waste collection system
Plug & Play setup Dual-load roll capability
Up to 10 vertical cutting units LED lighting with emergency indicators
Enhanced alignment system for vertical cutting units Pneumatic, self-sharpening vertical cutting units
Monolithic machine structure Up to 10 customizable memory settings
Standard roll capacity up to 70 kg (154 lbs)

Optional features

  • Single vertical cutting units (up to 10)

  • Double central cutting unit

  • Laser positioning kit for vertical cutting units

  • Motorized stacker with airflow blade

  • Automatic copy collection table

  • Fixed copy collection table

Why Choose Neolt

Trusted by professionals worldwide for precision and reliability

Made in Italy

Designed for seamless printer integration workflows

Designed for high-production industrial environments

Advanced automation reduces labor and production time

Advanced alignment technology for flawless installation results

Perfect synchronization between printing and cutting

Production Reliability

Trusted solution for high-volume wallpaper production
Specification Metric Imperial
Cutting Width Options 1650 mm / 2100 mm 65 in / 82.7 in
Cutting Thickness (X Axis) 1.2 mm 0.047 in
Cutting Thickness (Y Axis) 1.0 mm 0.039 in
Feed Speed 5–18 m/min 16.4–59 ft/min
Horizontal Cutting Speed 1–50 m/min 3.3–164 ft/min
Max Vertical Cutting Units 10 10
Power 230V / 110V – 50Hz – 650W 230V / 110V – 50Hz – 650W
Max Roll Weight 70 kg 154 lbs

Canon Colorado Automation System: Transform Your Print Workflow

The Canon Colorado automation system represents a breakthrough in industrial print workflow automation, delivering seamless integration between high-speed digital printing and precision finishing operations.

This print and cut automation system eliminates manual bottlenecks that slow production, reduce profitability, and limit scalability in modern print operations.

By automating the complete workflow from roll to sheet processing through inline finishing, production facilities achieve unprecedented efficiency, consistency, and throughput.

Why Automation Matters in Industrial Print Workflows

Modern print production faces mounting pressures that make automation essential for survival and growth:

  • Rising Labor Costs: Manual operations require skilled labor for repetitive tasks, driving up costs while limiting production capacity during labor shortages.
  • Faster Turnaround Demands: Customers expect same-day or next-day turnaround on orders that previously took weeks, requiring continuous production capability.
  • Consistency and Precision: Manual cutting and finishing introduce variability that leads to waste, rework, and customer dissatisfaction.
  • Competitive Pressure: Competitors with automated workflows can offer faster delivery, lower prices, and higher quality, making automation a competitive necessity.

Common Production Bottlenecks in Print & Cut Workflows

Traditional print and cut operations face critical challenges that limit productivity and profitability:

Manual Cutting Bottlenecks

Operators must manually measure, mark, and cut printed materials, creating delays between printing and finishing that slow overall production and increase labor costs.

Labor Inefficiencies

Skilled operators spend time on repetitive tasks instead of value-added activities, while production stops when operators are unavailable or overwhelmed.

Material Waste Issues

Manual processes introduce measurement errors and cutting mistakes that waste expensive media and require costly reprints.

Inconsistent Output Quality

Human variability in cutting and finishing creates inconsistent results across production runs, damaging customer relationships and brand reputation.

Workflow Interruptions

Material handling between printing and finishing stations creates delays, increases damage risk, and prevents continuous production flow.

Automated Print and Cut Workflow Solution

An integrated print and cut automation system transforms production by eliminating manual steps and creating continuous workflow from printing through finishing:

Before

Manual Workflow

Print job completes, operator removes media, transports to cutting station, measures and marks cuts, manually cuts material, inspects results, and moves to next station. Each step introduces delays and error opportunities.

After

Automated Workflow

Print job completes and automatically transfers to inline finishing system, which precisely cuts to specifications without operator intervention. Finished products emerge ready for delivery with consistent quality and minimal waste.

Why Automate Canon Colorado Workflows

Canon Colorado printers deliver exceptional print quality and speed, but their full potential is only realized when integrated with automated finishing systems that match their production capacity:

  • Reduced Manual Handling: Automated material transfer from printer to finishing eliminates manual handling that slows production and risks damage to freshly printed materials.
  • Faster Job Turnaround: Inline finishing systems process jobs immediately after printing, enabling same-day delivery on orders that previously required multiple days.
  • Improved Workflow Efficiency: Continuous workflow from printing through finishing maximizes Canon Colorado printer utilization and return on investment.

Benefits of Print Workflow Automation

Labor Cost Reduction

Automated systems reduce labor requirements by 60-80% compared to manual operations, allowing operators to focus on higher-value tasks while maintaining or increasing production output.

Waste Reduction

Precision automated cutting eliminates measurement errors and cutting mistakes, reducing material waste by up to 30% and virtually eliminating costly reprints.

Increased Throughput

Continuous automated workflow processes jobs 3-5 times faster than manual operations, enabling facilities to accept more orders and deliver faster turnaround times.

Improved Consistency

Automated systems deliver identical results across production runs, ensuring every piece meets specifications and maintaining brand quality standards.

Scalable Production

Automated workflows scale production capacity without proportional increases in labor, enabling growth without the challenges of hiring and training additional operators.

Who This System Is For

Wallpaper Producers

  • High-volume roll-to-sheet workflows requiring precision cutting
  • Custom wallpaper production with variable repeat lengths

Sign Shops

  • Mixed media production requiring flexible finishing
  • Fast turnaround demands for retail and event graphics

Print-on-Demand Operations

  • Short runs requiring efficient automation
  • Variable data printing with automated finishing

High-Volume Digital Printers

  • Continuous production environments
  • Workflow optimization for maximum printer utilization

Applications for Automated Print and Cut Systems

  • Wallpaper Production Automation: Custom and commercial wallpaper production with automated cutting to precise panel lengths and pattern matching
  • Retail Graphics: Point-of-purchase displays, window graphics, and promotional materials requiring fast turnaround
  • Large Format Signage: Banners, posters, and outdoor signage with automated trimming and finishing
  • Industrial Print Applications: Packaging prototypes, labels, and specialty applications requiring precision cutting

How the Automated Workflow Operates

The automated print and cut system creates a seamless workflow that eliminates manual intervention and maximizes production efficiency:

  1. Printing on Canon Colorado
    Canon Colorado printer produces high-quality output at production speed, with job data automatically transmitted to the finishing system.
  2. Automated Material Transfer
    Printed material automatically transfers from printer to inline finishing system without manual handling, maintaining continuous workflow.
  3. Inline Cutting
    Precision cutting system processes material according to job specifications, with automated registration ensuring perfect alignment.
  4. Output Handling
    Finished products emerge ready for quality control and delivery, with minimal operator intervention required throughout the entire process.

Frequently Asked Questions

Find answers to common questions about our products and services
It integrates directly with Canon Colorado printers for fully automated print-and-cut workflows.
Yes, it automatically synchronizes cutting speed with the printer output.
Wallpaper, laminated paper, canvas, polyester, vinyl, banners, reflective materials, and polycarbonate films.
No, the system is designed for fully automated operation once configured.

Downloadable Resources

Automate Your Print & Cut Workflow


Take your production to the next level with fully automated cutting integrated with your Canon Colorado printer. Contact us today for more information or a demo.
