Neolt XY Matic Trim 2023

The XY Matic Trim 2023 is a large-format XY cutter designed for precise, efficient cutting of photographic paper, vinyl, and wide-format print materials.

The Neolt XY Matic Trim 2023 is a versatile large-format cutter engineered for precision trimming across a wide range of materials, including photographic paper, vinyl, and polycarbonate films.

Designed for efficiency, the machine features multiple cutting units capable of cutting all four sides simultaneously. A mobile optical sensor reads cut marks for automated accuracy, while manual alignment ensures precise positioning during operation.

With electronic controls, self-sharpening blades, and high-speed performance, this cutter is ideal for print shops seeking reliable and cost-effective finishing solutions.

  • Large-format cutting up to 1650 mm width
  • Simultaneous cutting on all four sides
  • Optical sensor for automated cut mark detection
  • Reliable performance for multiple material types

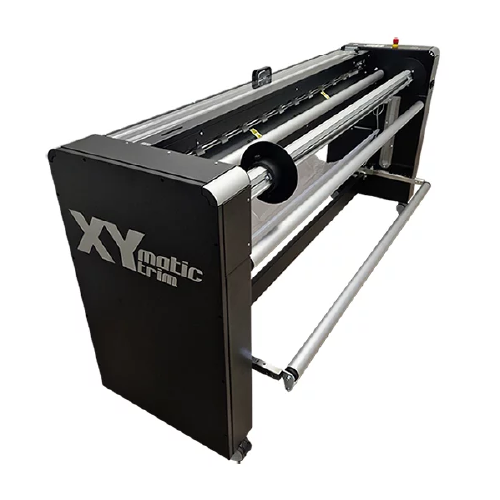

Neolt Factory XY Matic Trim 2023, a professional automated large-format industrial cutter for print finishing

Ideal Applications

  • Photographic and fine art print trimming

  • Vinyl and adhesive cutting

  • Inkjet print finishing

  • Banner and display graphics production

  • Polyester and polycarbonate film cutting

  • Print shop finishing workflows

See the XY Matic Trim 2023 in Action

Watch how the Neolt XY Matic Trim 2023 delivers precise, high-speed cutting for a wide range of large-format materials.

KEY FEATURES

Multiple cutting units for simultaneous four-side trimming Mobile optical sensor for automated cut mark reading
Manual longitudinal alignment for precision control Electronic control system with display for diagnostics
Easy roll loading system Vertical self-sharpening blade
Horizontal self-sharpening blade High-speed operation up to 500 linear meters/hour
Compatible with a wide range of materials

Optional features

  • Laser alignment system

  • Single vertical blade configuration

  • Double vertical blade configuration

  • Online kit for printer integration

Why Choose Neolt

Trusted by professionals worldwide for precision and reliability

Made in Italy

Made in Italy with precision engineering

Designed for high-production industrial environments

Reliable performance for professional print environments

Advanced alignment technology for flawless installation results

Efficient multi-cut system reduces production time

Production Reliability

Versatile compatibility with multiple media types
Specification Metric Imperial
Cutting Width 1650 mm 65 in
Cutting Thickness (X Axis) 1.2 mm 0.047 in
Cutting Thickness (Y Axis) 0.5 mm 0.020 in
Horizontal Cutting Speed 40 m/min 131 ft/min
Vertical Cutting Speed 12.5 m/min 41 ft/min
Production Speed 500 m/hr 1,640 ft/hr
Cutting Tolerance ±1 mm per meter ±0.039 in
Max Roll Diameter 300 mm 11.8 in
Max Roll Width 1650 mm 65 in
Max Roll Weight kg lbs

Frequently Asked Questions

Find answers to common questions about our products and services
It supports photographic paper, vinyl, inkjet paper, polyester, and polycarbonate films.
Yes, it uses an optical sensor to read cut marks and automate cutting processes.
Yes, multiple cutting units allow simultaneous trimming on all four sides.
Up to 1.2 mm (X axis) and 0.5 mm (Y axis), depending on the material.
